Data Sheet

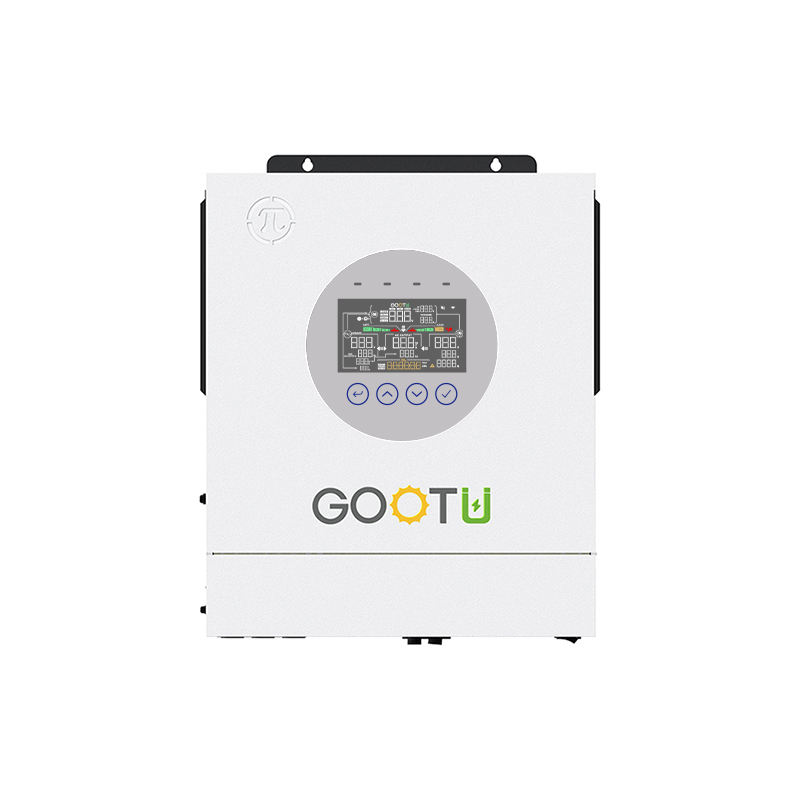

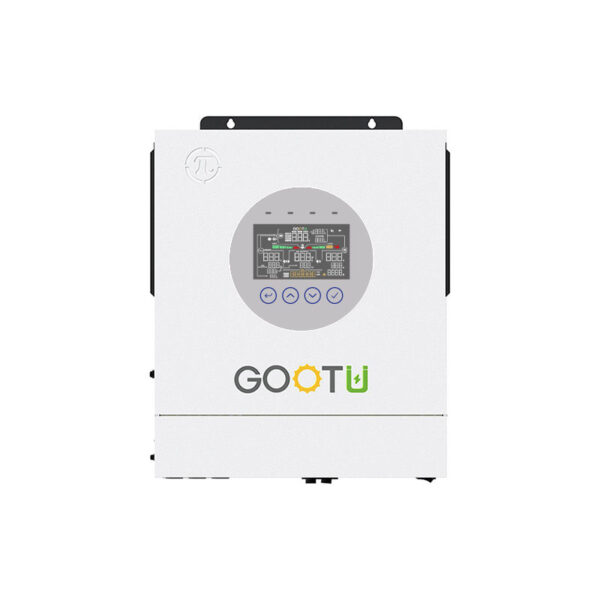

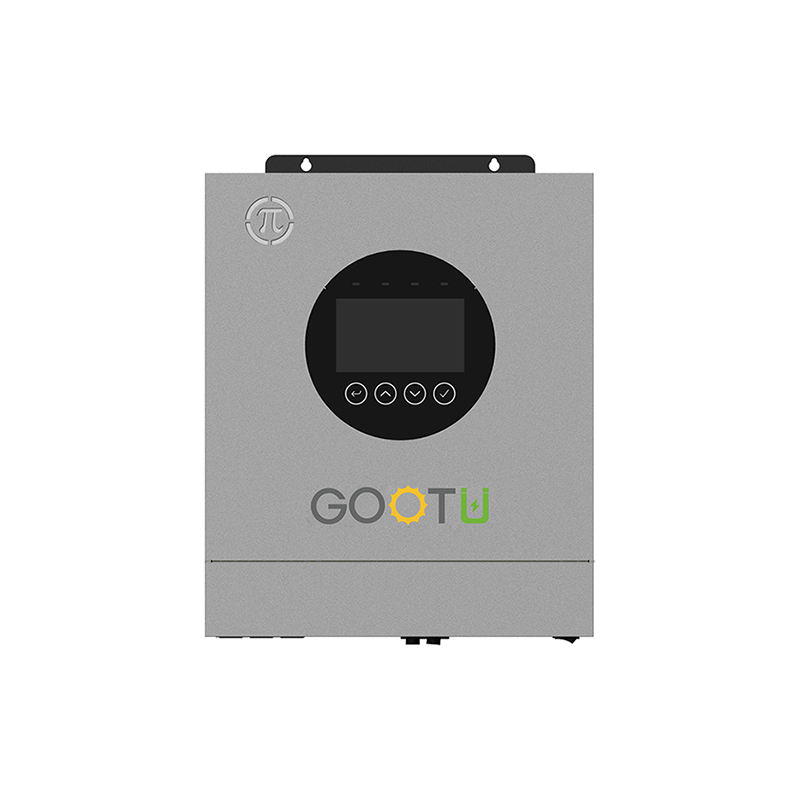

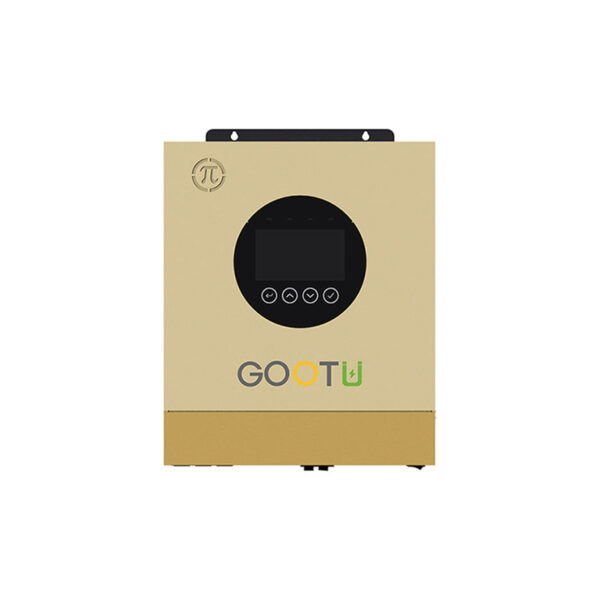

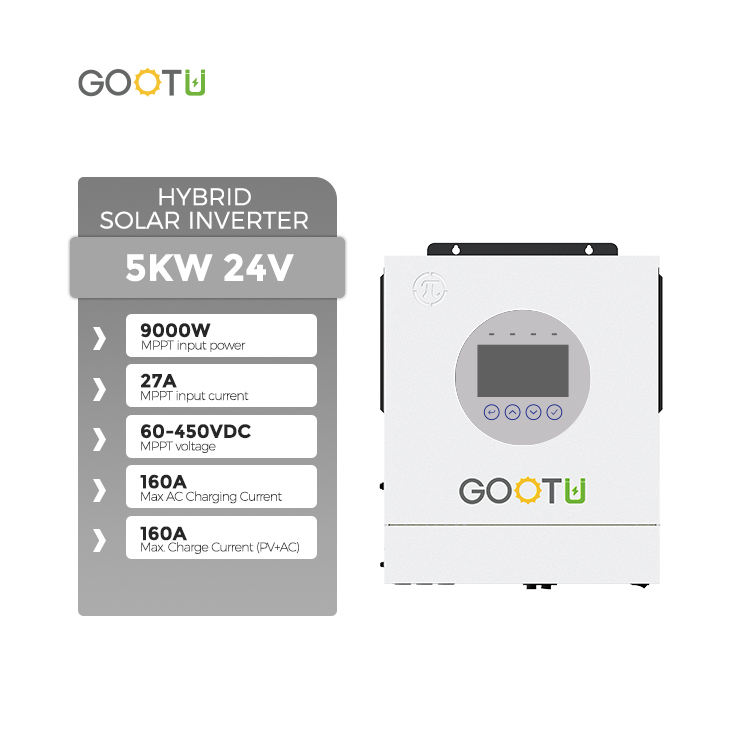

| Model | GT-H2450M27P9 |
| Rated Output Power | 5000W |
| Maximum Solar Charging Current | 160A |
| GRID TIE OPERATION | |
| PV INPUT(DC) | |
| MPPT input current and power | 27A/9000W |
| Maximum PV open circuit voltage | 500V |
| MPPT Voltage Range | 60VDC – 450VDC |
| Number of MPPT Trackers/Maximum Input Current | 1 / 27A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195.5-253VAC |
| Nominal Output Current | 27A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49~51±1Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| TWO LOAD OUTPUT POWER | |
| Full Load | 5000W |
| Maximum Main Load | 5000W |
| Main Load Cut Off Voltage | 44V DC |
| Main Load Return Voltage | 54V DC |
| OFF-GRID OPERATION | |
| AC INPUT | |
| Rated input Voltage (VAC) | 208/220/230/240;L+N+PE |
| Acceptable Input Voltage Range | 90~280(APP mode);170~280(UPS mode) |
| Maximum AC Input Current | 40A |
| Nominal operating frequency | 50/60Hz |
| BATTERY MODE OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240V AC |
| Output Waveform | Pure sine wave |
| Efficiency(DC to AC) | 95% |
| BATTERY&CHARGER | |
| Nominal DC Voltage | 24V DC |
| Maximum Solar Charging Current | 160A |
| Maximum AC Charging Current | 160A |
| GENERAL | |
| PHYSICAL | |
| Dimension,D X W X H(mm) | 490x394x176mm |
| Net Weight(kgs) | 8.4KG |
| INTERFACE | |
| Communication Port | RS485/RS232/USB |
| ENVIRONMENT | |
| Operating Temperature | -10-50℃ |
