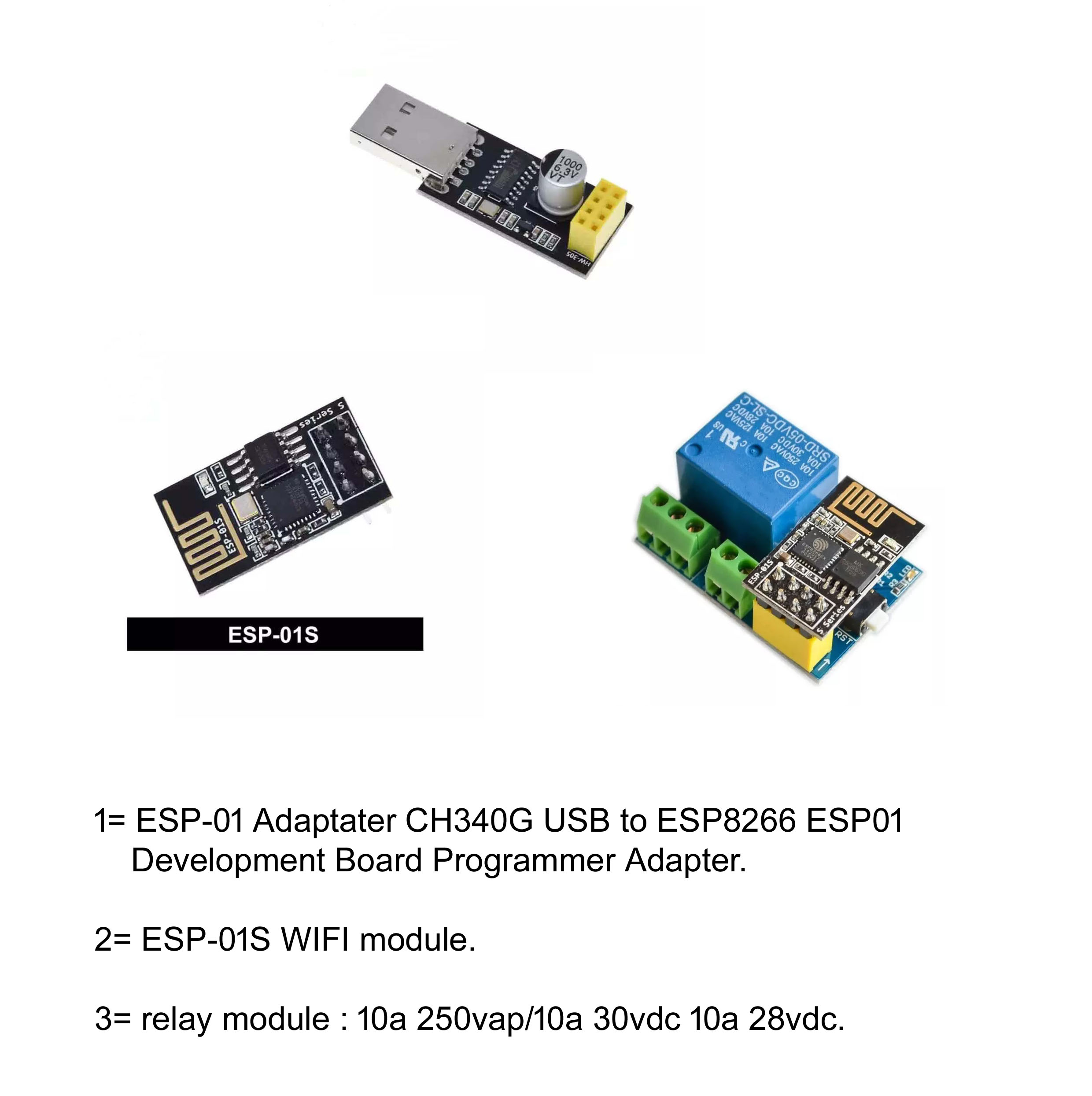

ESP8266 ESP-01S 5V WiFi Relay Module Things Smart Home Remote Control Switch for Arduinos Phone APP ESP01S Wireless WIFI Module

Original price was: ₹599.00.Current price is: ₹399.00.

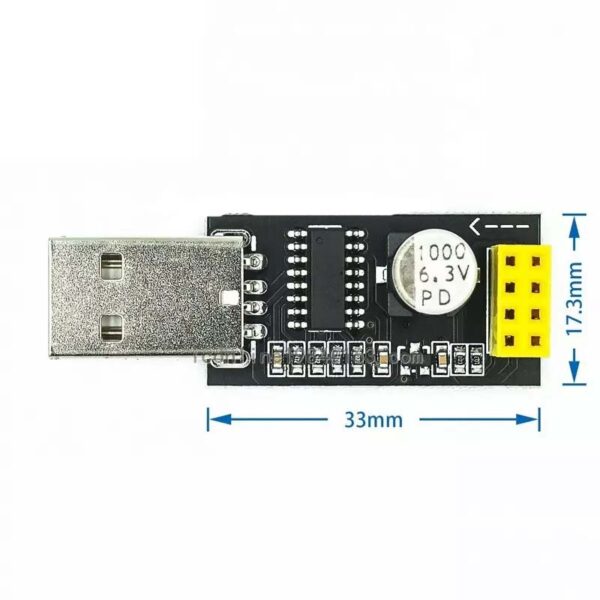

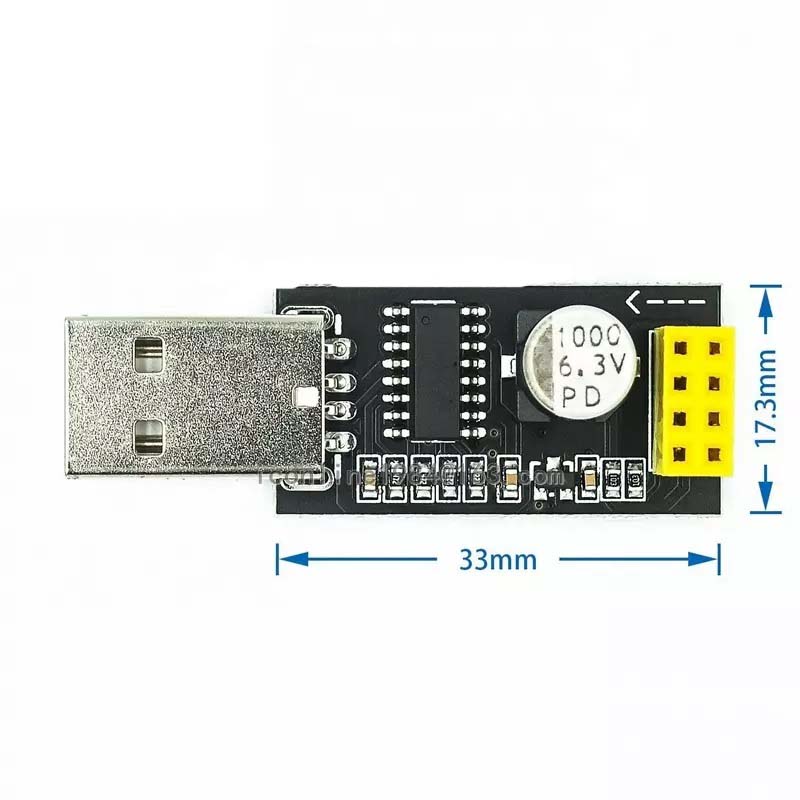

This module is only a USB to serial module, which is only responsible for converting the USB interface into a serial port suitable for esp8266 module. All WiFi knowledge, please check esp8266 module related information!! Main uses: This adapter board is mainly used to facilitate the connection of esp8266 to PC through serial port. Material characteristics: 1. Using ch340 to serial chip, stable performance, good compatibility, windows system basically all support. 2. The adapter board is integrated with 1000uf solid-state capacitor to ensure current supply, and WiFi module will not crash due to power supply problems. 3. 3225 chip crystal oscillator is adopted to improve the stability of serial port and make it beautiful.

Add to Wishlist
Add to Wishlist
Category: Brand:
Trust Badge Image

Description

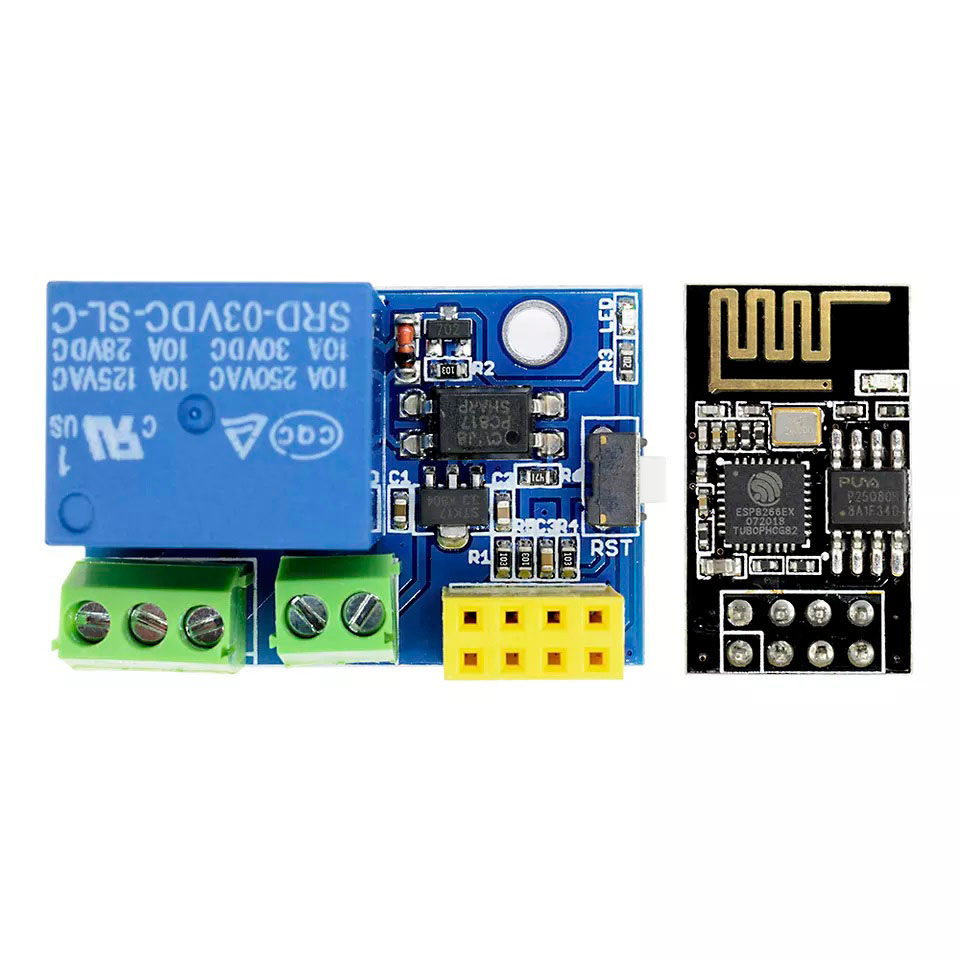

Esp8266 Esp-01s 5v Wifi Relay Module Things Remote Control Switch For Phone App Esp01s Wireless Wifi Module



Specifications: ESP-01S Serial/UART baud rate: 115200 bps Input power: 3.3V I/O voltage tolerance: 3.6V Max Flash Memory Size: 1MB
Support 3 modes: AP, STA, AP + STA WiFi security modes: WPA, WPA2 Size: 24.8 x 14.3 x 2.54 mm ESP-01/01S Relay Working voltage:
DC5V-9V Working current: ≥250mA Transmission distance: the maximum distance of 400m (open environment) Load: 10A/250VAC 10A/30VDC,
the relay pulls 100,000 times Product size: 37 * 25mm How to use? 2. Plug the ESP-01S module to the 2*4 pin header after download
the code to ESP-01/01S. 3. Connect a DC 5V-9V power to the GND and VCC. 4. Install Controller.apk on your Android phone. 5.
Connect the mobile phone network to the hotspot sent by ESP-01/01S: ESP8266_XXX, password is: 12345678 6. Set the IP Address, the
default IP is: 192.168.1.1 7. Click GPIO 0 ON OFF to control.
